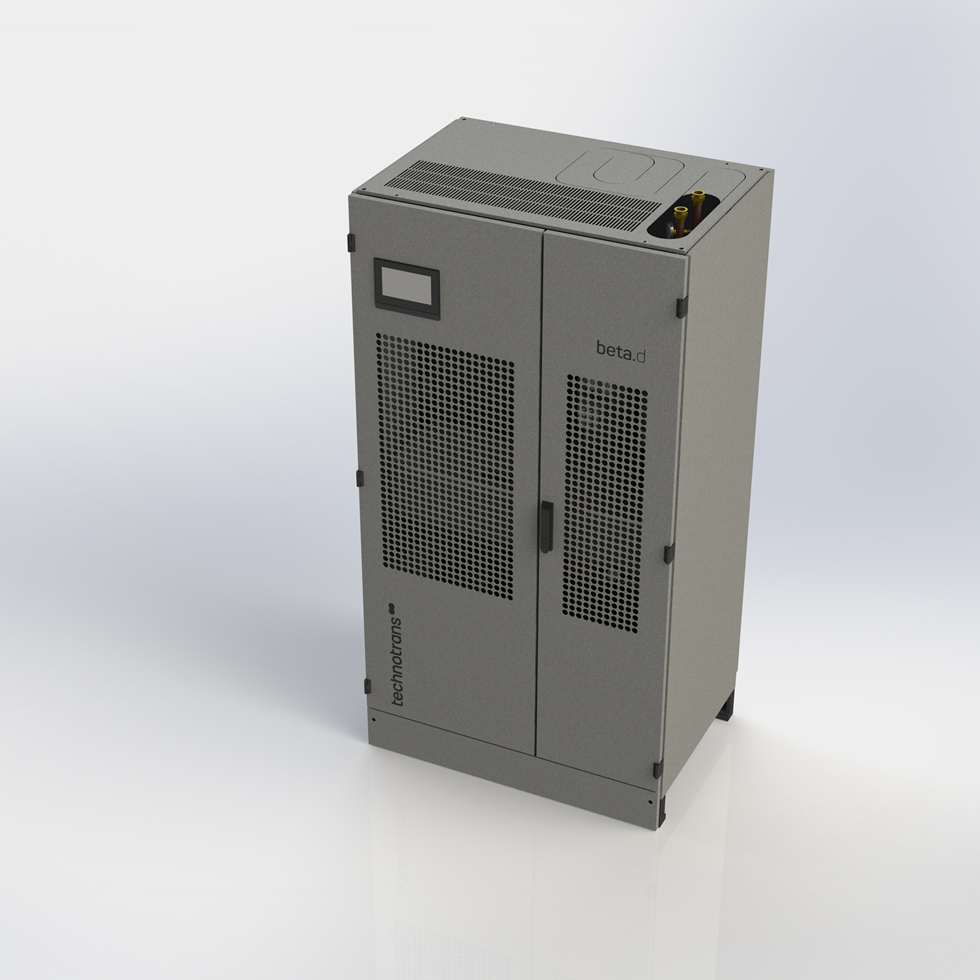

Space-saving and efficient cabinet unit for dampening solution circulation applications. With its numerous features, the beta.d dampening solution circulator fulfils even the highest demands of modern offset printing applications. It combines cooling and filtration as well as alcohol and additive dosing with optional conductivity and pH measurements in a single solution.
The beta.d system convinces thanks to its ergonomic and service-friendly design. Its latest version uses the environmentally friendly A1 safety refrigeration R513A with a considerably lower global warming potential (GWP 631).
An intermediate tank with prefiltering function ensures a continuous dampening solution recirculation, thereby considerably reducing foaming. The beta.d system is available as an air-cooled or water/glycol-cooled variant.
PDF-Download
- ErP-compliant with regard to the Ecodesign directive and F-gas regulation
- Environmentally friendly R513A refrigerant with a low GWP value (global warming potential)
- High level of service friendliness thanks to the ergonomic design
- Integrated tanks for IPA and additives to ensure the cleanliness of the area around the printing press
- Reduced use of additives thanks to highly precise measuring and dosing systems
- softflow filter bag with a 300% larger filter area compared to filter mats
- Clearly structured, intuitive operation thanks to a 7" uni.control touch screen
- Data interface for linking the system to a control station, ready for web/browser visualisation and remote maintenance
- Wide range of equipment options, e.g. highly precise measurement and dosing systems for a reduced additive consumption
- Cooling capacity between 4 kW and 15 kW
- Available as an air-cooled or glycol-cooled version with a cooling air supply from the front to the top
- Standard RAL 7031 or RAL 7035 colour (other colours upon request)
- Equipped with a 7" touch panel, softflow filter and 20 l alcohol safety tank
- Ready for the connection of 1 or 2 intermediate tanks and of the beta.f fine filtration unit
- Measuring, control and dosing technology depending on the actual requirements
- fluidos or digidos.p dosing technology with a consumption measurement system
- alcocontrol or alcosmart DSP system for IPA measurement and control
- Conductivity measurement system (in the dampening solution circuit or fresh water inlet and downstream of the additive mixing system)
- pH measurement system
- IPA consumption measurement system
- and much more
